Lazer Lamps Kabelsatz Air/Glide/Linear/Triple-R/Sentinel - 2 Scheinwerfer, mit Positionslicht
ab 15,00 € + MwSt
(19,05 €)
Auf Lager
Parameters
What's included:

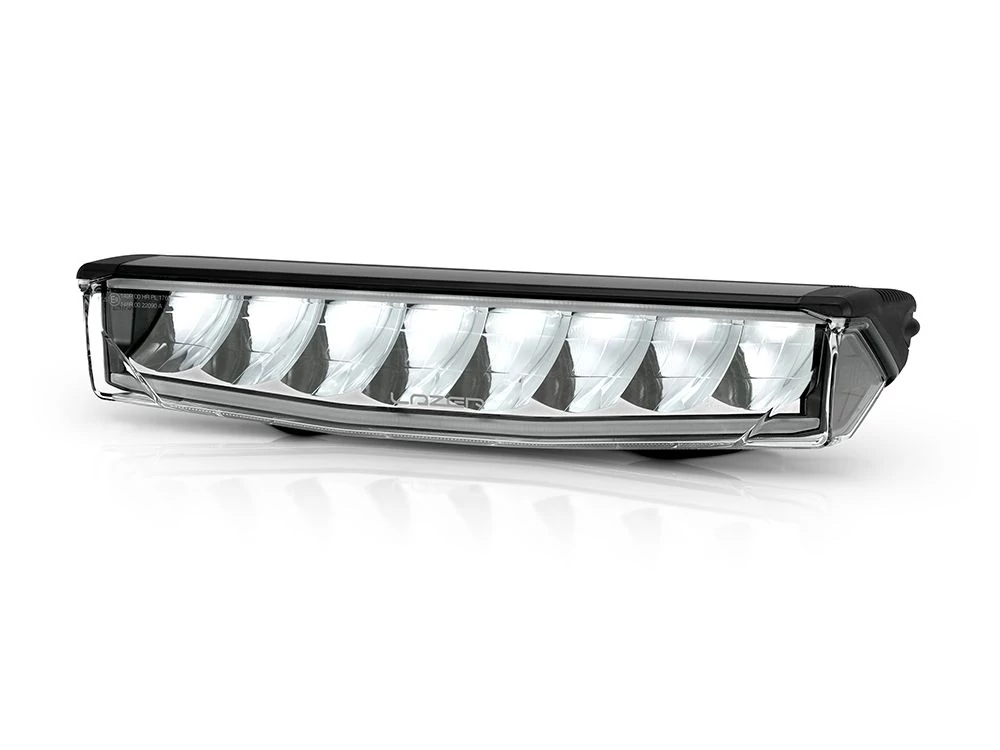

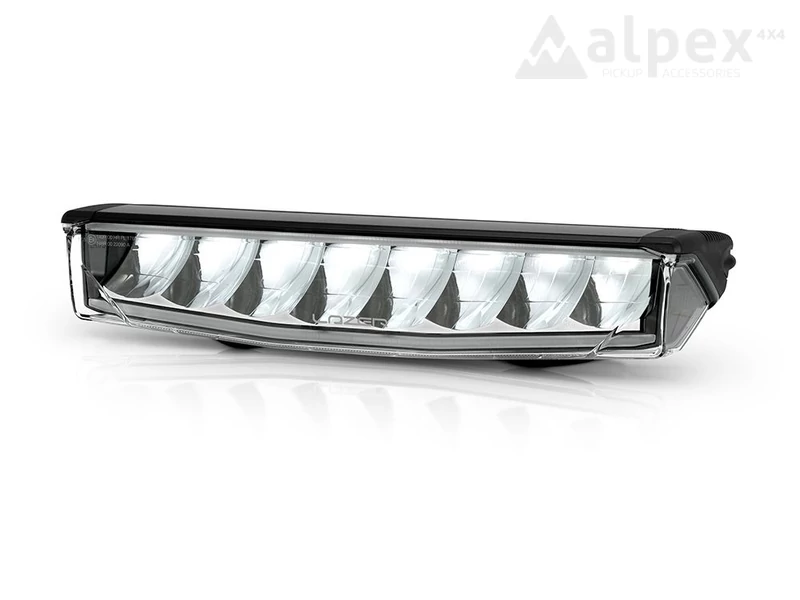

• x1 AIR-90 LED Lamp
• x2 Centre Mounting Kit (1151k)
• x1 Wiring and Installation Instructions
| Technical data: | E-Boost | E-Mark Mode |
| Voltage Range | 10-32V | 10-32V |
| LED Life | 50,000 hours | 50,000 hours |
| Weight | 1.65 kg | 1.65 kg |
| High beam function | ||
| Total Luminous Flux | 9,160 Lm | 2,290 Lm |
| Colour Temperature | 5000k | 5000k |
| Power Consumption | 90 Watts | 14 Watts |
| Peak Current Draw | 8.5 Amps | 1.3 Amps |
| Current Draw (at 14.4V) | 7.1 Amps | 1 Amps |
| Connector | 3-Pin Superseal (+25cm Cable) | 3-Pin Superseal (+25cm Cable) |
| Dimensions | ||
| Width | 411 mm | 411 mm |
| Depth | 106 mm | 106 mm |
| Height | 82 mm | 82 mm |
| Certification | ||
| High Beam | N/A | ECE R149 |
| E-Mark Ref | N/A | 17.5 |
| Photometric data | ||
| 0.25 lx Line | 1149 metres | 574 metres |
| 0.5 lx Line | 812 metres | 406 metres |
| 1 lx Line | 574 metres | 287 metres |
| 3 lx Line | 332 metres | 166 metres |
| Beam spread | ||
| Horizontal | 34° | 34° |
| Vertical | 13° | 13° |
