Lazer Lamps Carbon-6 (Gen3) LED Fernscheinwerfer - Spot

489,00 € + MwSt ( 621,03 € )

Markieren Sie bitte die Zubehöre, die Sie in den Warenkorb legen möchten!

Verfügbarkeit Produktionzeit 3 Woche
Hersteller
Artikelnr. 00C6-SPOT-G3
• Ultra-lightweight, PC-ABS material housing
• Combination of high intensity ”matrix” LEDs
• Full-beam mode can be limited to operate with UNECE E-mark regulation limits
• Secondary ”Fog” beam mode
• Additional lighting modes possible with variable PWM input signals
• Carefully selected 5000K colour temperature maximises sharpness and definition

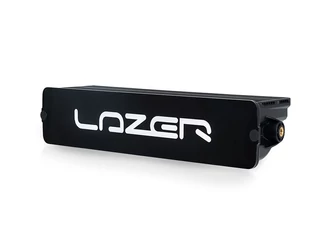

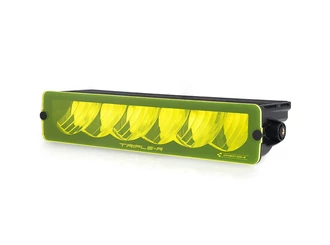

• Included quick fit and release lens covers - Amber and Black
• CAE-optimised heatsink requires minimal airflow to maintain 100% light output
• Dynamic drive modulation preserves electronic components in adverse conditions
• Low profile, edge-to-edge design for improved aerodynamic performance
• Lamp features a built-in DT04-4P Deutsch Connector (gold plated solid DT contacts)
• Vehicle side connector, plus 300mm cable length supplied with each lamp.
• Compatible 2-lamp and 4-lamp wiring looms available
• Rally mounting solutions available including carbon-fibre rally pods
• Fine tune adjustment mechanism on each light for accurate aiming (when used with compatible rally pods)
• ”Unbreakable” polycarbonate lens
• IP67 watertight
• 5-year warranty
• Designed & manufactured in Britain

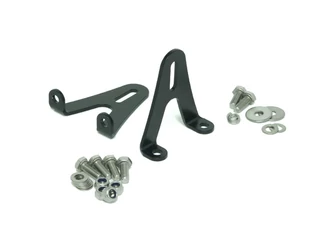

Lazer Lamps Seitenbefestigung, Alu

ab 11,00 € + MwSt (13,97 €)
Auf Lager

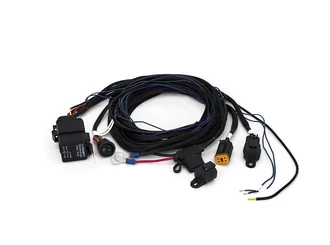

Lazer Lamps Kabelsatz Carbon-6 - 2 Scheinwerfer

75,00 € + MwSt (95,25 €)
Produktionzeit 3 Woche

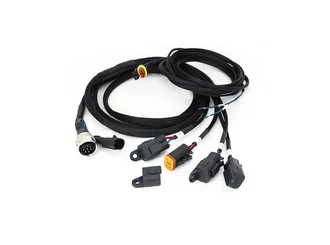

Lazer Lamps Kabelsatz Carbon-6 - ITT Stecker, 4 Scheinwerfer

139,00 € + MwSt (176,53 €)
Produktionzeit 3 Woche

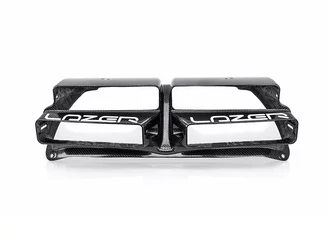

Lazer Lamps Rally Pod - Fiesta MKII, 4 Fernscheinwerfer

2.299,00 € + MwSt (2.919,73 €)
Produktionzeit 3 Woche

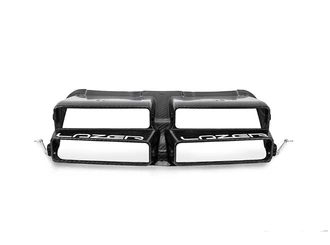

Lazer Lamps Rally Pod - Škoda R5, 4 Fernscheinwerfer

2.299,00 € + MwSt (2.919,73 €)
Produktionzeit 3 Woche

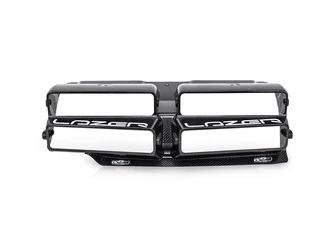

Lazer Lamps Rally Pod - Citroën C3, 4 Fernscheinwerfer

2.299,00 € + MwSt (2.919,73 €)
Produktionzeit 3 Woche

Parameters

What's included:

• x1 Carbon-6 Spot LED Lamp
• x1 Amber Lens Cover
• x1 Black Lens Cover
• x1 Wiring and Installation Instructions


Technical data:

Voltage Range 10-32V
LED Life 50,000 hours
Weight 450 gr
HIGH BEAM FUNCTION
Total Luminous Flux 9360 Lm
Colour Temperature 5000K
Number of High Output LEDs 6
Power Consumption 85 Watts
Current Draw (at 14.4V) 5.9 Amps
Start-up Time * 5 ms
DIMENSIONS
Width 315 mm
Depth 82 mm
Height 70 mm
PHOTOMETRIC DATA
0.25 lx Line 1670 metres
0.5 lx Line 1180 metres
1 lx Line 834 metres
3 lx Line 480 metres
BEAM SPREAD
Horizontal 32 degree spread

* 'Start-up time' is the delay between the lamp receiving voltage, and light being emitted. Different Lazer lamps have different start-up times, depending on their electrical architecture, so we recommend that if you are buying two different types of Lazer lamp, for mounting on to the same vehicle, that you ensure you pick products with matching start-up time (either 5ms or 100ms, depending on the product). Please check the lamps technical section on each product page to be sure you are purchasing lights with the same start-up time for the best performance.
