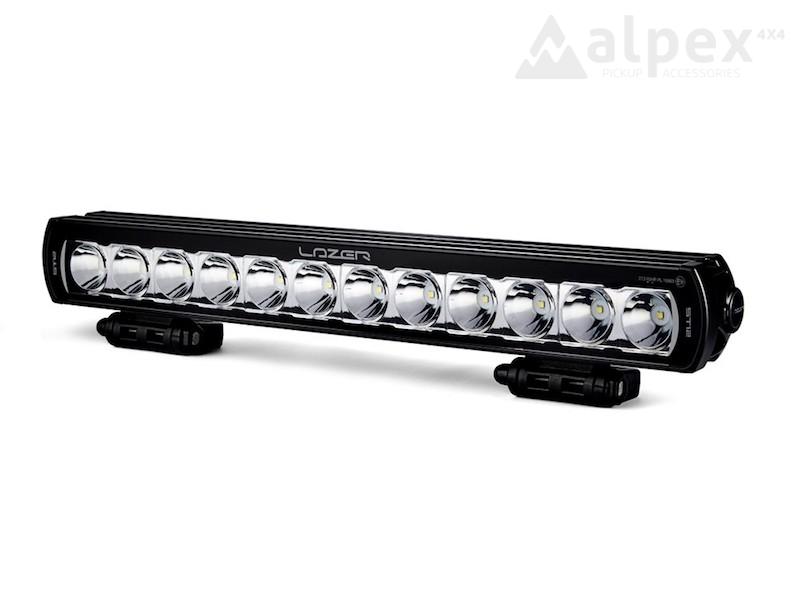

• An exciting addition to the ST range of road-legal driving lights, the ST12 Evolution at just under 21” is the ideal choice for people looking for either: the ultimate road-legal lighting solution, in the form of a pair of lamps mounted across a roof bar, or customers looking for a single light bar option which alone delivers 1 lux to just under 500m. Despite its impressive range, the spread and even distribution of light in the short and mid-range make the ST12 the premium choice for everyday road and off-road applications.
• Upgraded high-density 11W LEDs are carefully selected for their high ‘bin’ rating, and in the case of the ST12 Evolution deliver 12,408 lumens. Advanced electronic design, combined with sophisticated thermal management systems, and ultra-reflective vacuum-metallised reflectors, harness the light output into a ‘Drive’ beam pattern optimised for lower speed applications where the priority is for good all-round visibility, albeit still with enviable distance illumination. The colour temperature of the LEDs at 5000 kelvin has also been specifically selected to maximise sharpness and definition, while proven to reduce eye-strain associated with some higher (blue-white) colour temperatures.
• Performance aside, the ST12 Evolution is built to last. With a 5 year warranty as standard, and a lifetime guarantee on the ‘unbreakable’ polycarbonate lens, which is coated with a hardcoat lacquer to protect against any scratches, the lamp is capable of withstanding the harshest environments. An IP69K rating certifies the lamp will not be subjected to moisture or dust ingress, with additional counter-measures to ensure the unit remains fully contained even in the most extreme of temperatures and humidity. The full aluminium housing gives the lamp its strength and rigidity, while an e-coat pre-treatment provides automotive quality corrosion resistance. Dynamic drive modulation optimises light output considering the thermal conditions of the lamp (preserving the longevity of the LEDs).
• With a seamless, low profile design, the new ST Evolution range is now not only easier to install, but is more resistant to dirt, snow and ice accumulations, and the contemporary styling is guaranteed to complement and enhance the appearance of modern vehicles.
• x1 ST12 Evolution LED Spotlight
• x2 Centre Mount (1114k)
• x1 Wiring and Installation Instructions
|LED Life||50,000 hours|
|HIGH BEAM FUNCTION|
|Total Luminous Flux||12408 Lm|
|Number of High Output LEDs||12|
|Power Consumption||144 Watts|
|Current Draw (at 14.4V)||10.0 Amps|
|Start-up Time *||100 ms|
|High Beam||ECE R112|
|0.25 lx Line||962 metres|
|0.5 lx Line||680 metres|
|1 lx Line||481 metres|
|3 lx Line||278 metres|
|Horizontal||28 degree spread|
|Vertical||24 degree spread|
|* 'Start-up time' is the delay between the lamp receiving voltage, and light being emitted. Different Lazer lamps have different start-up times, depending on their electrical architecture, so we recommend that if you are buying two different types of Lazer lamp, for mounting on to the same vehicle, that you ensure you pick products with matching start-up time (either 5ms or 100ms, depending on the product). Please check the lamps technical section on each product page to be sure you are purchasing lights with the same start-up time for the best performance.|
