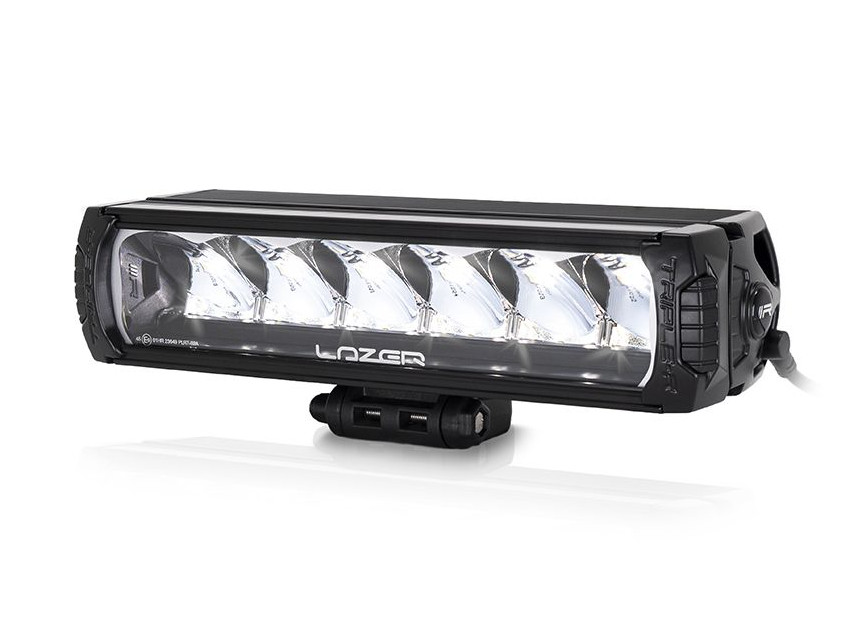

Lazer Lamps Triple-R 850 Standard Gen2 LED Fernscheinwerfer - Hohe Reichweite

Zum Vergrößern anklicken
Weitere Bilder
299,00 € + MwSt ( 379,73 € )
Artikelnr. 00R6-G2
• Highly efficient 11W LED technology (upgraded for 2021)
• Integrated white or amber position lights function
• Ultra-reflective vacuum-metallised optics deliver spot beam pattern
• ECE approved for on-road high beam and position/side light function (white only)
• Contemporary lamp design
• Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately)
• CAE optimised heatsink offers improved thermal dynamics
• Anodised pre-treatment and Automotive grade powder top-coat for ultimate corrosion and chemical protection
• Electronic thermal management
• ‘Unbreakable’ and hardcoated polycarbonate lens
• IP67 watertight
• 5-year warranty
• Vehicle wiring kits available
• Designed & manufactured in Britain
Verfügbarkeit Auf Lager


Responsive image• Achieving 1 lux at 529m, the Triple-R 850 delivers superior lighting performance alongside exceptional build quality and product design. Fully ECE approved for on-road use (E9 Ref 45), the Triple-R 850 is well suited to everyday road use whether: heavy truck, light commercial vehicle, or passenger cars and 4x4s.

• Utilising the latest technology alongside premium ‘BIN’ rated LEDs, the Triple-R 850 delivers 6,150 raw lumens of light output. From this point, lighting performance is borne out of the individual component parts, and electrical and product design, for which there is no compromise in quality or reliability. From the vacuum metallised hooded reflectors, to the CAE optimised heatsink, and electronic thermal management system which ensures light output is maximised considering the environmental and thermal conditions of the lamp, the Triple-R is engineered to the highest standards.

• Comprising a 'spot' beam pattern, the unique styling of the Triple-R range alongside a fully aluminium enclosure, gore-tex breather membrane, and virtually unbreakable polycarbonate lens cover, means the Triple-R 850 will look good in even the toughest of environments, backed up by a comprehensive 5 year warranty.

• Measuring a little over 320mm in length the size of the Triple-R 850 makes it the ideal option for a broad range of mounting locations where space might be limited, but that the requirement is for a solution that pushes the limits of what is permissible in respect of ECE road-legal lighting.


What's included:

• x1 Triple-R 850 LED Lamp
• x1 Centre Mount (1114k)
• x1 Wiring and Installation Instructions

Technical data:
Voltage Range 10-32V
LED Life 50,000 hours
Weight 1.34 kg
High beam function
Total Luminous Flux 6930 Lm
Colour Temperature 5000k
Number of High Output LEDs 6
Power Consumption 66 Watts
Current Draw (at 14.4V) 4.6 Amps
High Beam ECE R112
E-Mark Ref 45
Position Light (White) ECE R7
Width 322 mm
Depth 105 mm
Height 73 mm
Photometric data
0.25 lx Line 1061 metres
0.5 lx Line 750 metres
1 lx Line 530 metres
3 lx Line 306 metres
Beam spread
Horizontal 19 degree spread
Vertical 18 degree spread
