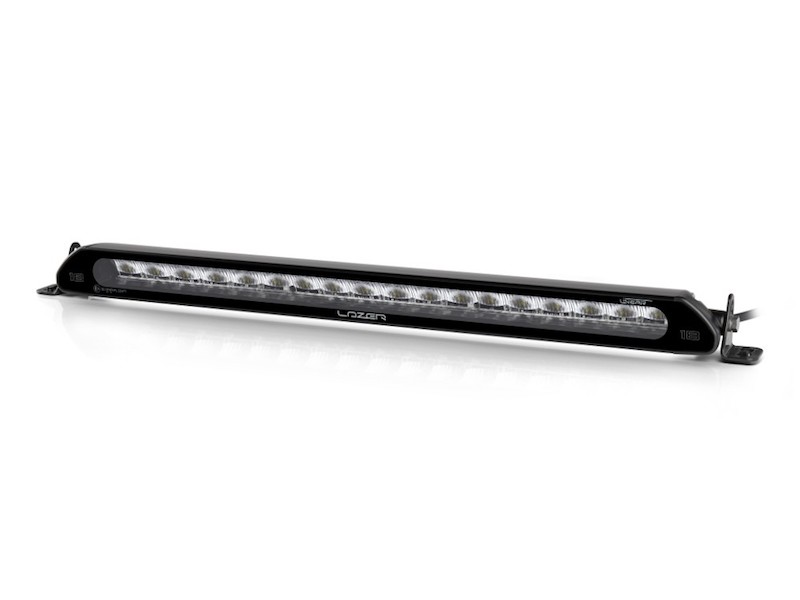

The Linear-18 is an ECE approved, road-legal versatile and economical auxiliary lighting solution which provides a significant upgrade when compared with any OE headlamps. The Linear-18 is ideal for passenger vehicles, where regulations allow for a single lamp to be connected direct to the standard high beams, and in particular where the lamp is being mounted low down at the front of the vehicle.
• Utilising highly efficient 3W LEDs, the Linear-18 delivers 6,750 lumens, and 1 Lux to 428m, impressive performance considering the lamp only consumes minimal power at 63W and with a current draw of 4.4Amps. The light distribution can be best described as ‘wide’ which taking nothing away from the enviable distance illumination, does provide for a comfortable left/right spread of light, with a comparatively lower up/down spread (when compared to the equivalent ST or Triple-R product), that makes the Linear-18 especially well suited to lower install positions, such as vehicle grille or number plate mounting.
• At 532mm in length, and with an aluminium body measuring just 40mm in height, and weighing a little over 1kg, this is an auxiliary LED light that can be subtly integrated onto any everyday road vehicle without compromising the vehicle aesthetics. A borderless 'unbreakable' polycarbonate front lens, with hardcoat lacquer, allows for improved aero performance and prevents build-up of ice/snow/dirt that might otherwise interfere with the light distribution. Automotive grade corrosion resistance, alongside stainless steel brackets and fasteners, ensures the high-end styling of the lamps themselves stays in prime condition for many years to come.
• x1 Linear-18 LED Lamp
• x1 Side Mount (1126k)
• x1 Wiring and Installation Instructions
|LED Life||50,000 hours|
|HIGH BEAM FUNCTION|
|Total Luminous Flux||6750 Lm|
|Number of High Output LEDs||18|
|Power Consumption||63 Watts|
|Current Draw (at 14.4V)||4.4 Amps|
|Start-up Time *||100 ms|
|High Beam||ECE R112|
|0.25 lx Line||855 metres|
|0.5 lx Line||605 metres|
|1 lx Line||428 metres|
|3 lx Line||247 metres|
|Horizontal||34 degree spread|
|Vertical||11 degree spread|
|* 'Start-up time' is the delay between the lamp receiving voltage, and light being emitted. Different Lazer lamps have different start-up times, depending on their electrical architecture, so we recommend that if you are buying two different types of Lazer lamp, for mounting on to the same vehicle, that you ensure you pick products with matching start-up time (either 5ms or 100ms, depending on the product). Please check the lamps technical section on each product page to be sure you are purchasing lights with the same start-up time for the best performance.|
