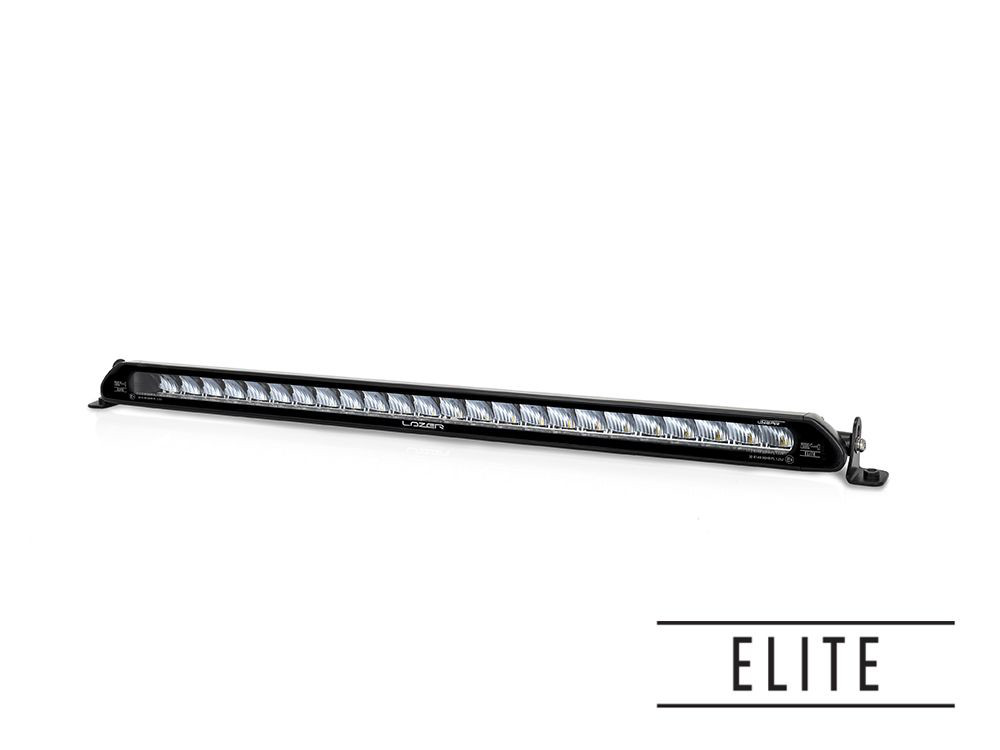

Lazer Lamps Linear-24 Elite LED Fernscheinwerfer - Breite Lichtverteilung

629,00 € + MwSt ( 798,83 € )
Verfügbarkeit Auf Lager
Artikelnr. 0L24-DBL-EL-LNR
• Combination of highly efficient 3W ‘premium bin’ LEDs
• Vacuum-metallised optics deliver wide spread of light
• Reduced up/down spread of light suits even low mounting positions, or roof mounting
• Sleek, low profile design facilitates installation
• Automotive grade corrosion resistance
• ECE approved
• Anti-theft security fixings supplied as standard
• Electronic thermal management
• ‘Unbreakable’ polycarbonate lens with lifetime guarantee
• IP67 watertight
• 5 year warranty
• Supplied with male/female connectors (pre-wired)
• Designed & manufactured in the UK


What's included:

• x1 Linear-24 Elite LED Lamp
• x1 Anti-Theft Side Mount (1127k)
• x1 Wiring and Installation Instructions

Technical data:
Voltage Range 10-32V
LED Life 50,000 hours
Weight 2000 gr
Total Luminous Flux 18000 Lm
Number of High Output LEDs 24
Power Consumption 188 Watts
Current Draw (at 14.4V) 14.4 Amps
Start-up Time * 5 ms
High Beam ECE R112
ECE Reference 2x30
Width 682 mm
Depth 62 mm
Height 40 mm
0.25 lx Line 1126 metres
0.5 lx Line 796 metres
1 lx Line 563 metres
3 lx Line 325 metres
Horizontal 64 degree spread
Vertical 15 degree spread
* 'Start-up time' is the delay between the lamp receiving voltage, and light being emitted. Different Lazer lamps have different start-up times, depending on their electrical architecture, so we recommend that if you are buying two different types of Lazer lamp, for mounting on to the same vehicle, that you ensure you pick products with matching start-up time (either 5ms or 100ms, depending on the product). Please check the lamps technical section on each product page to be sure you are purchasing lights with the same start-up time for the best performance.
