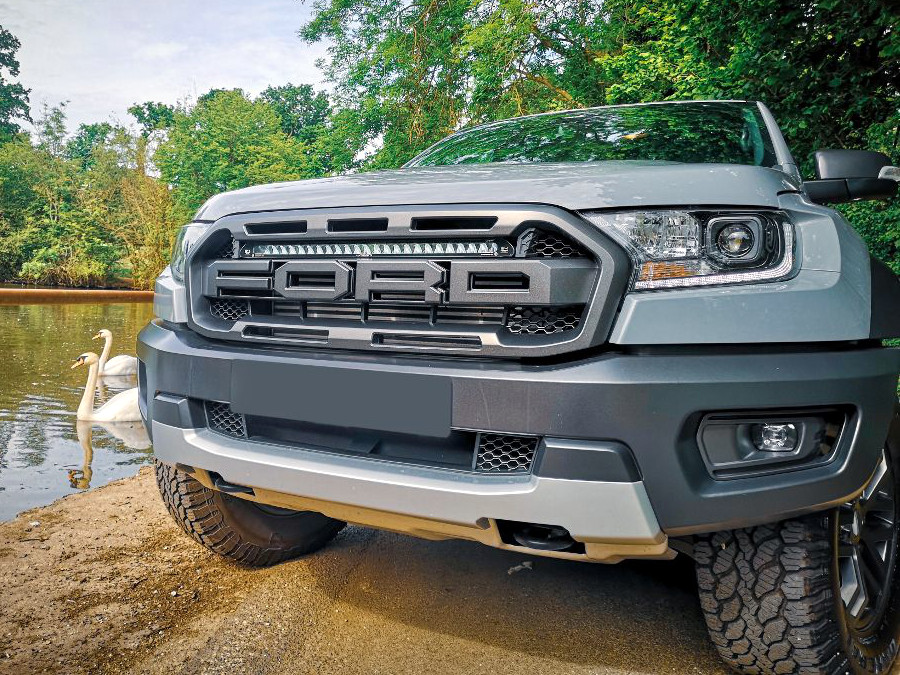

Lazer Lamps Kühlergrill LED Fernscheinwerfer Satz - Linear-24 Elite - Raptor 2019-2022

689,00 € + MwSt ( 875,03 € )

Markieren Sie bitte die Zubehöre, die Sie in den Warenkorb legen möchten!

Verfügbarkeit Auf Lager
Artikelnr. GK-RAP-ELITE-01K
• Bespoke vehicle integration kit for Lazer LED Spotlight installation
• Custom fit for Ford Ranger Raptor (2019-2022)
• Compatible with Linear-24 Elite LED Spotlight
• Kit also includes bespoke mounting brackets and wiring kit
• Cutting guides included
• Brackets made from high strength, UV -stable, ASA material
• Fully road-legal
• 5-year warranty
• Made in Britain


What's included:

• x1 Linear-24 Elite LED Lamp
• x1 Mounting Kit (comprising 2x Brackets and fasteners)
• x1 Cutting Guide (comprising 2x Brackets)
• x1 One-Lamp Wiring Kit
• x1 Wiring and Installation Instructions

Technical data:
Voltage Range 10-32V
LED Life 50,000 hours
Weight 2000 gr
Total Luminous Flux 18000 Lm
Colour Temperature 5000K
Number of High Output LEDs 24
Power Consumption 188 Watts
Current Draw (at 14.4V) 14.4 Amps
Start-up Time * 5 ms
High Beam ECE R112
ECE Reference 2x 30 (2x 10 - With E-Mark Cap)
Width 682 mm
Depth 62 mm
Height 40 mm
0.25 lx Line 1126 metres
0.5 lx Line 796 metres
1 lx Line 563 metres
3 lx Line 325 metres
Horizontal 64 degree spread
* 'Start-up time' is the delay between the lamp receiving voltage, and light being emitted. Different Lazer lamps have different start-up times, depending on their electrical architecture, so we recommend that if you are buying two different types of Lazer lamp, for mounting on to the same vehicle, that you ensure you pick products with matching start-up time (either 5ms or 100ms, depending on the product). Please check the lamps technical section on each product page to be sure you are purchasing lights with the same start-up time for the best performance.
