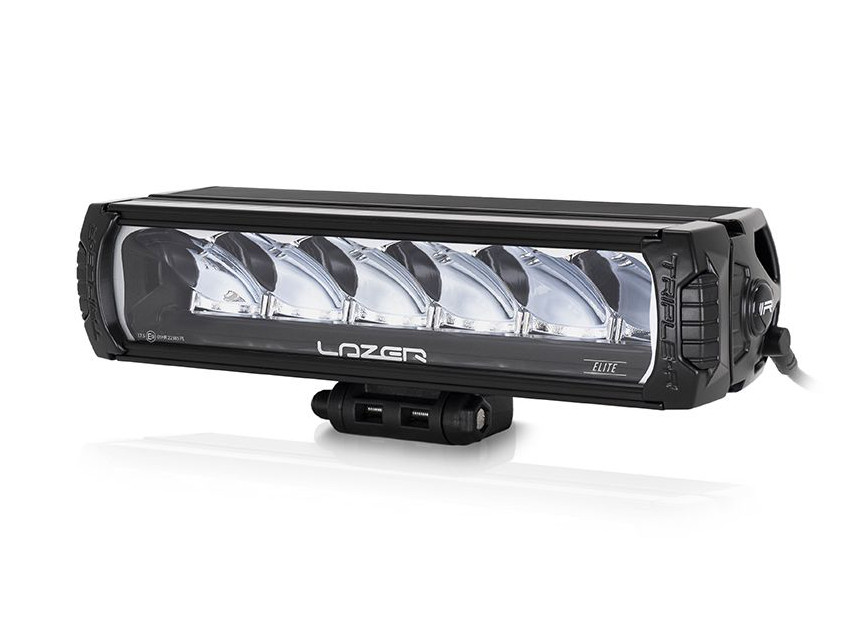

Lazer Lamps Triple-R 850 Elite LED Fernscheinwerfer - Hohe Reichweite
Zum Vergrößern anklicken
Weitere Bilder
Preis
379,00 € + MwSt ( 481,33 € )
Hersteller
Artikelnr.
00R6-EL-G2
• Ultra-reflective vacuum-metallised optics deliver perfectly tuned beam pattern • Highly efficient LED technologies (upgraded for 2021) • 5000K LED colour temperature and 80CRI maximises sharpness and definition • Ultra-reflective vacuum-metallised optics deliver spot beam pattern • UNECE Reg 112 Class B Driving Light, approved for on-road high beam (E-Boost technology) • Contemporary lamp design • Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately) • Electronic thermal management system optimises light output to preserve longevity of the LEDs • Anodised pre-treatmnet and automotive grade powder top-coat for ultimate corrosion and chemical protection • CAE optimised heatsink offers improved thermal dynamics • Over voltage protected • Reverse polarity protected • ‘Unbreakable’ polycarbonate lens with hardcoat lacquer • UNECE approved Reg 10 • IP67 watertight • 5-year warranty • Supplied with pre-wired male/female 2-pin Superseal connectors • Designed & manufactured in UK
• x1 Triple-R 850 Elite LED Lamp
• x1 Centre Mount (1114k)
• x1 Wiring and Installation Instructions
Technical data:
E-Boost
E-Mark Mode
Voltage Range
10-32V
10-32V
LED Life
50,000 hours
50,000 hours
Weight
1.34 kg
1.34 kg
High beam function
Total Luminous Flux
8068 Lm
2017 Lm
Colour Temperature
5000k
5000k
Number of High Output LEDs
6
6
Power Consumption
73 Watts
18 Watts
Current Draw (at 14.4V)
5.1 Amps
1.3 Amps
Start-up Time *
100 ms
100 ms
Certification
High Beam
N/A
ECE R112
E-Mark Ref
N/A
17.5
Dimensions
Width
322 mm
322 mm
Depth
105 mm
105 mm
Height
73 mm
73 mm
Photometric data
0.25 lx Line
1162 metres
520 metres
0.5 lx Line
822 metres
367 metres
1 lx Line
581 metres
260 metres
3 lx Line
335 metres
150 metres
Beam spread
Horizontal
42 degree spread
42 degree spread
Vertical
13 degree spread
13 degree spread
* 'Start-up time' is the delay between the lamp receiving voltage, and light being emitted. Different Lazer lamps have different start-up times, depending on their electrical architecture, so we recommend that if you are buying two different types of Lazer lamp, for mounting on to the same vehicle, that you ensure you pick products with matching start-up time (either 5ms or 100ms, depending on the product). Please check the lamps technical section on each product page to be sure you are purchasing lights with the same start-up time for the best performance.
