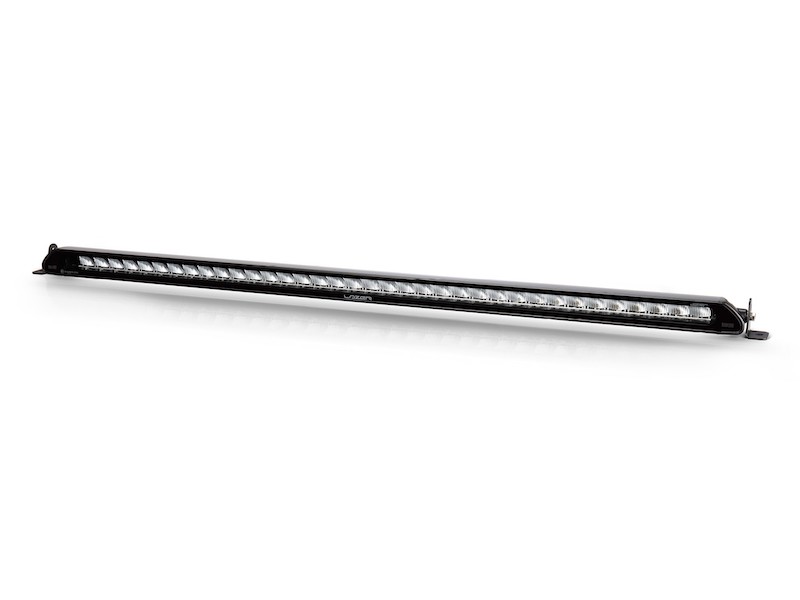

• x1 Linear-36 Double LED Lamp
• x1 Linear Anti-Theft Side Mounting Kit (1127K)
• x1 Wiring and Installation Instructions
Technical data:
Voltage Range
9-32V
LED Life
50,000 hours
Weight
2.7 kg
HIGH BEAM FUNCTION
Total Luminous Flux
13500 Lm
Number of High Output LEDs
36
Power Consumption
126 Watts
Current Draw (at 14.4V)
8.8 Amps
Start-up Time *
100 ms
CERTIFICATION
High Beam
ECE R112
ECE Reference
50
DIMENSIONS
Width
982 mm
Depth
62 mm
Height
40 mm
PHOTOMETRIC DATA
0.25 lx Line
940 metres
0.5 lx Line
665 metres
1 lx Line
470 metres
3 lx Line
271 metres
BEAM SPREAD
Horizontal
25 degree spread
Vertical
10 degree spread
* 'Start-up time' is the delay between the lamp receiving voltage, and light being emitted. Different Lazer lamps have different start-up times, depending on their electrical architecture, so we recommend that if you are buying two different types of Lazer lamp, for mounting on to the same vehicle, that you ensure you pick products with matching start-up time (either 5ms or 100ms, depending on the product). Please check the lamps technical section on each product page to be sure you are purchasing lights with the same start-up time for the best performance.
