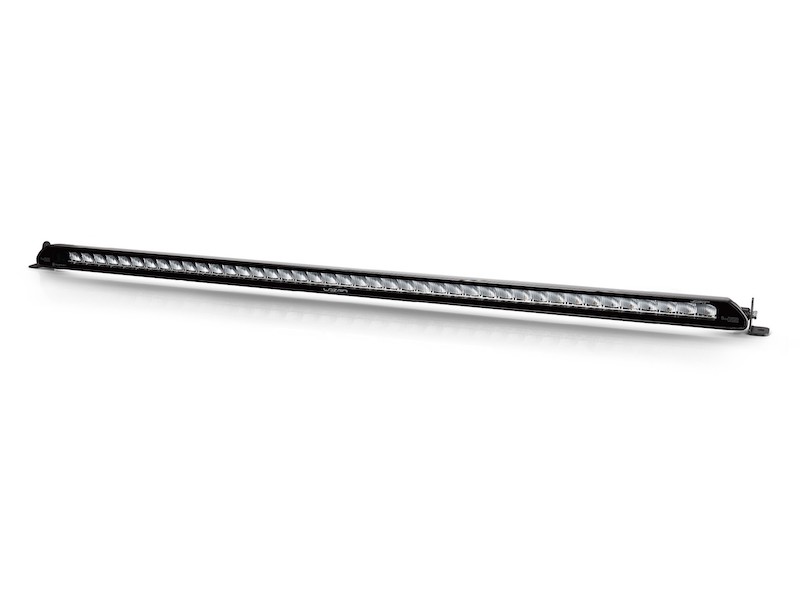

Lazer Lamps Linear-42 Standard LED Fernscheinwerfer - Breite Lichtverteilung

Bitte wählen Sie
719,00 € + MwSt ( 913,13 € )

Markieren Sie bitte die Zubehöre, die Sie in den Warenkorb legen möchten!

Verfügbarkeit Auf Lager
Hersteller
Artikelnr. 0L42-LNR
• Aerodynamic design virtually eliminates wind noise from roof installations
• Highly efficient LED technology
• Contemporary design features enhance vehicle aesthetics
• Automotive grade corrosion resistance
• Reduced up/down spread of light eliminates glare from roof installations
• ECE approved
• Anti-theft security fixings supplied as standard
• Electronic thermal management
• ‘Unbreakable’ polycarbonate lens with lifetime guarantee
• IP67 watertight
• 5 year warranty
• Supplied with male/female connectors (pre-wired)
• Designed & manufactured in the UK

Lazer Lamps Nummernschildhalterung

23,00 € + MwSt (29,21 €)
Auf Lager

Lazer Lamps Dachmontagesatz

ab 52,00 € + MwSt (66,04 €)
Produktionzeit 3 Woche

Parameters

What's included:

• x1 Linear-42 LED Lamp
• x1 Linear Anti-Theft Side Mounting Kit (1127K)
• x1 Wiring and Installation Instructions


Technical data:

Voltage Range 9-32V
LED Life 50,000 hours
Weight 3.5 kg
HIGH BEAM FUNCTION
Total Luminous Flux 15750 Lm
Number of High Output LEDs 42
Power Consumption 147 Watts
Current Draw (at 14.4V) 10.2 Amps
Start-up Time * 100 ms
CERTIFICATION
High Beam ECE R112
ECE Reference 50
DIMENSIONS
Width 1132 mm
Depth 62 mm
Height 40 mm
PHOTOMETRIC DATA
0.25 lx Line 984 metres
0.5 lx Line 696 metres
1 lx Line 492 metres
3 lx Line 284 metres
BEAM SPREAD
Horizontal 50 degree spread
Vertical 20 degree spread

* 'Start-up time' is the delay between the lamp receiving voltage, and light being emitted. Different Lazer lamps have different start-up times, depending on their electrical architecture, so we recommend that if you are buying two different types of Lazer lamp, for mounting on to the same vehicle, that you ensure you pick products with matching start-up time (either 5ms or 100ms, depending on the product). Please check the lamps technical section on each product page to be sure you are purchasing lights with the same start-up time for the best performance.
